Sunday Darkwave ‑ Broc Raiford AuthenticMatte Pine Green with 21.25" tt in LHD

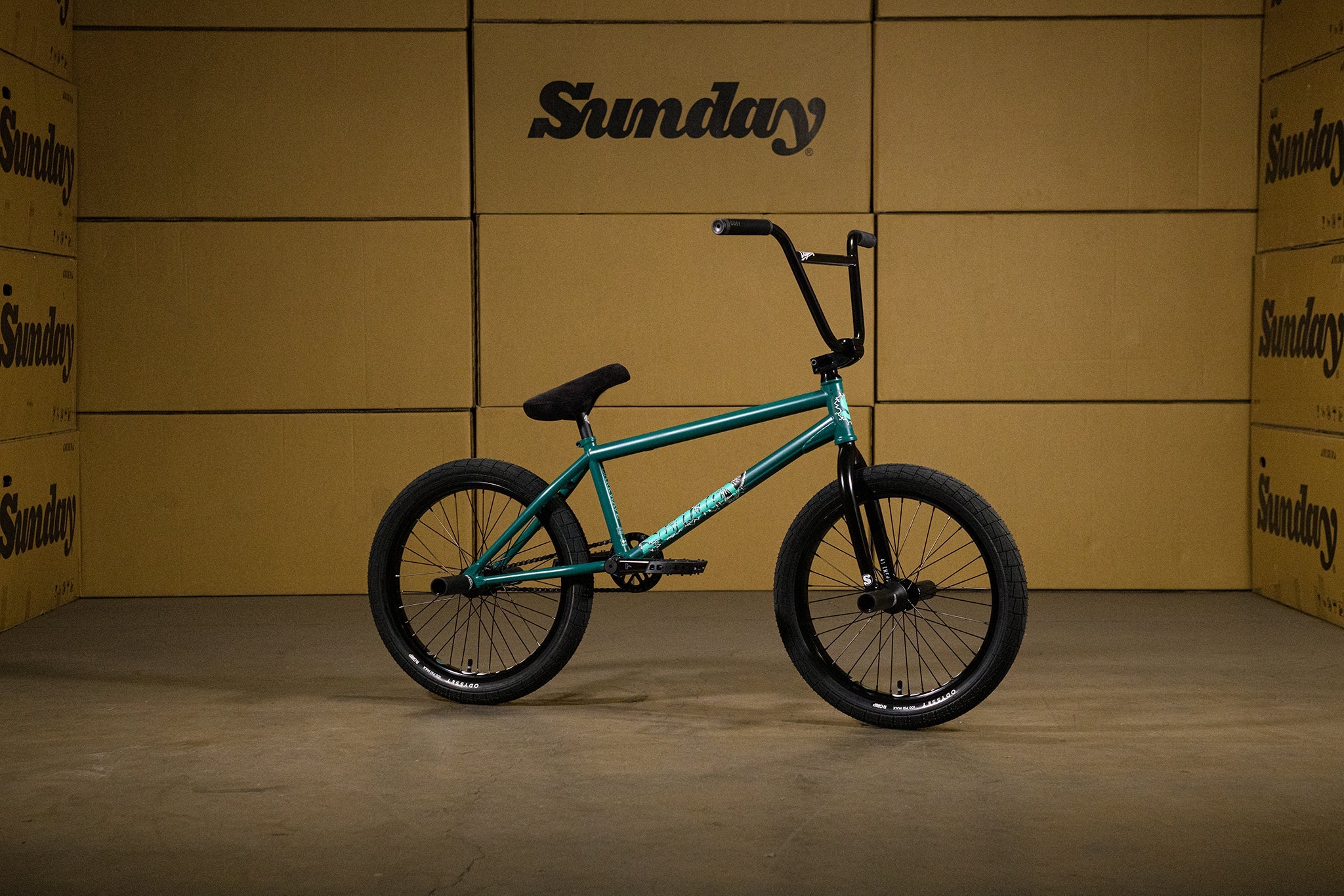

This is the Broc Raiford Darkwave Authentic in Matte Pine Green.
This model is 100% aftermarket parts and exactly what Broc rides, all the way down to his signature Odyssey and Sunday products, left hand drive setup and top tube size. Too many great parts to list. Decal artwork by Broc himself. 41-Thermal Lifetime Replacement Warranty on Bars, Forks, and Cranks for good measure.
Odyssey Springfield Brake, Lever and Quik-Slick Kable are included (not pictured).
It doesn’t get much better than this.
Key Features
- 100% Aftermarket Parts Kit
- Lifetime Warranty on Bars, Forks, and Cranks
- Sunday Darkwave Frame
- Sunday Darkwave 41-Thermal Forks
- Odyssey BROC 41-Thermal Bars
- Odyssey Broc v2 Stem
- Odyssey Thunderbolt 41-Thermal Cranks
- Odyssey Clutch Pro Freecoaster
- Odyssey Vandero Pro Front Hub
- Odyssey BIG BOYD Rims
- Odyssey Broc Tires with R-Grip
Specifications

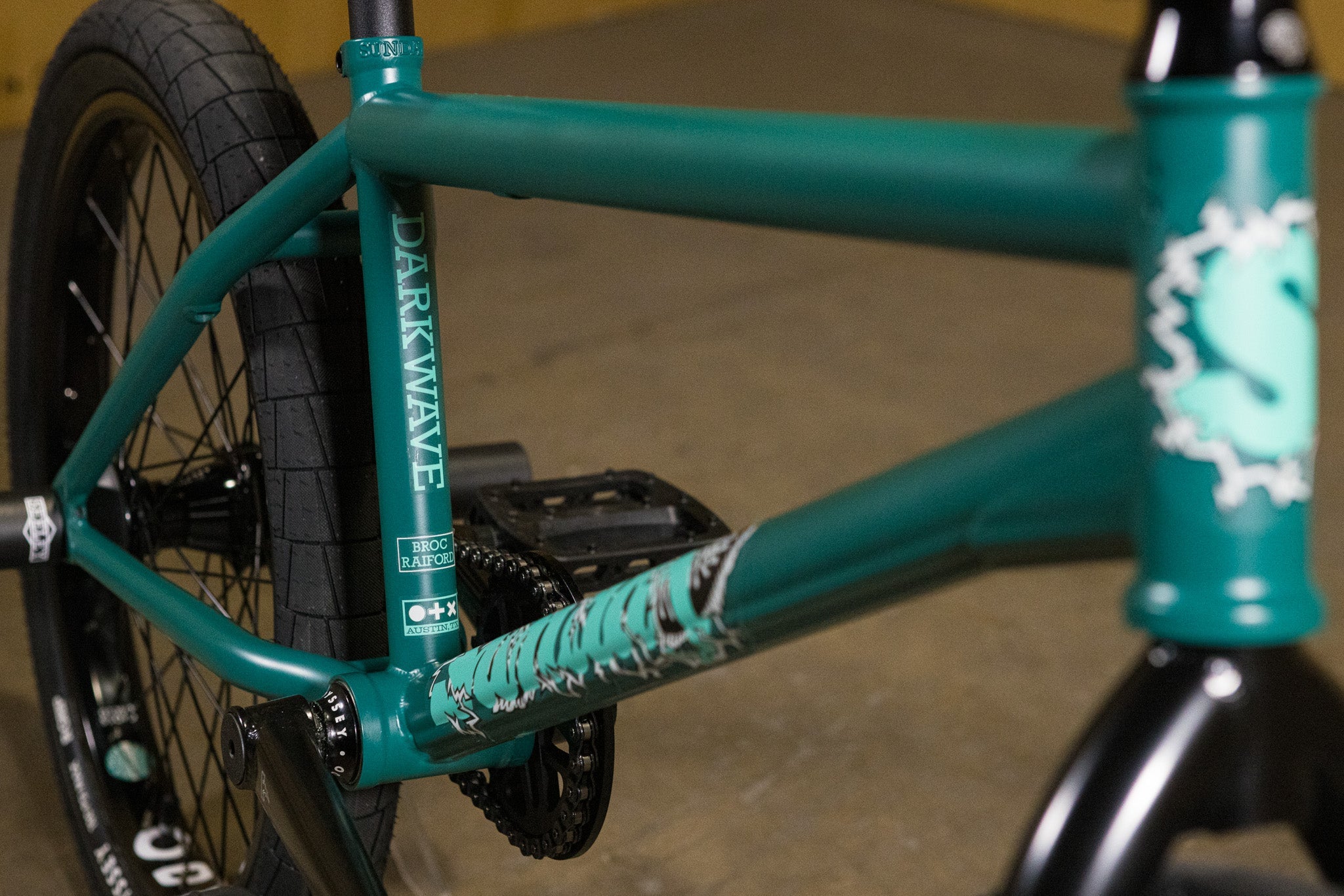

Frame: Sunday Darkwave, 21.25" TT, 100% chromoly, aftermarket frame, w/ wave downtube and removable brake hardware
Fork: Sunday Darkwave, 100% chromoly, 41-Thermal, aftermarket fork, 28mm offset

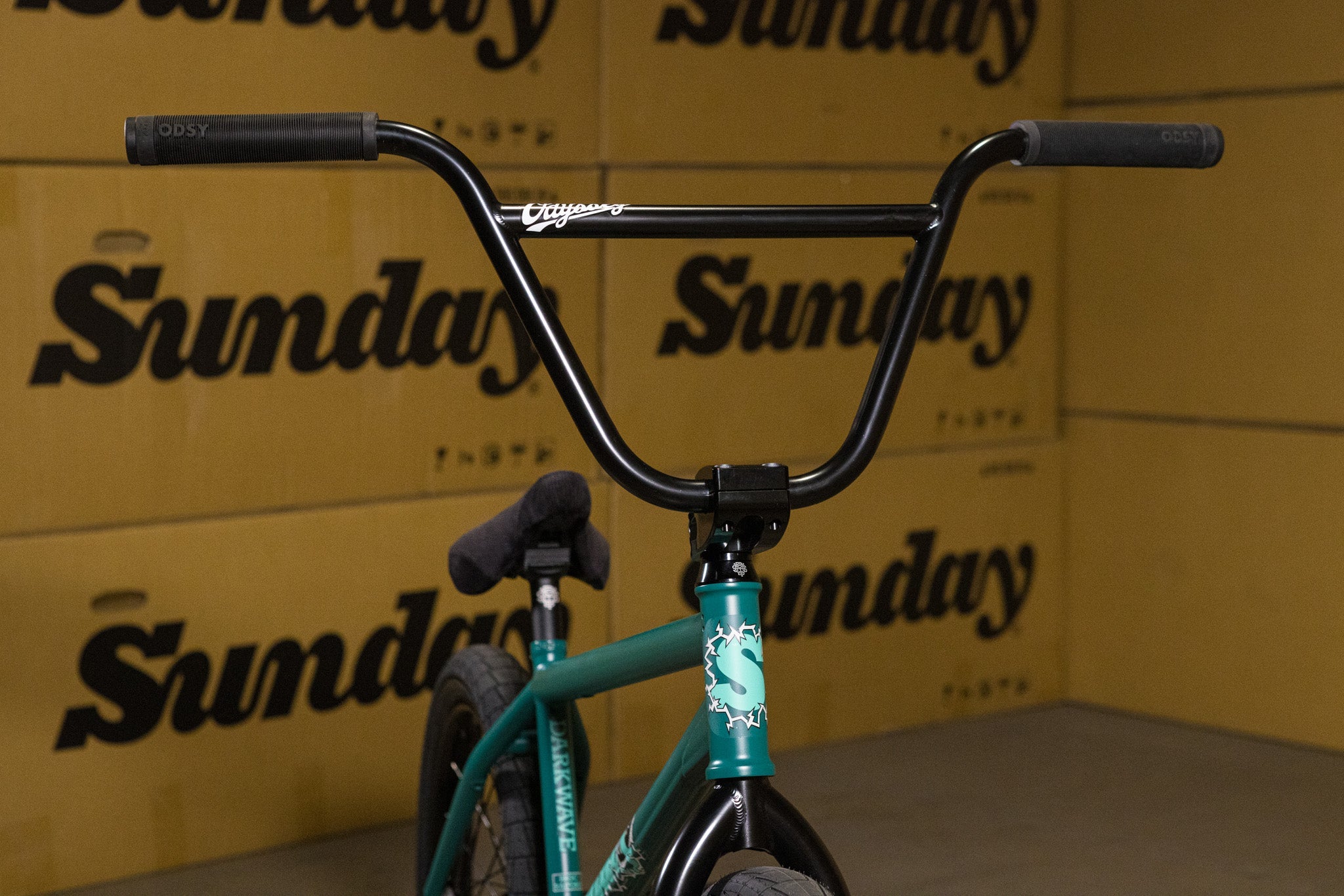

Handlebar: Odyssey BROC Bar, 41-Thermal, aftermarket bar
Stem: Odyssey BROC v2 Stem, 50mm
Headset: Odyssey Pro Conical, 1-1/8"
Headset Cap: Sunday aftermarket, aluminum
Brake Lever: Odyssey Springfield
Brakes: Odyssey Springfield U-brake
Brake Cable: Odyssey Linear Quik Slic

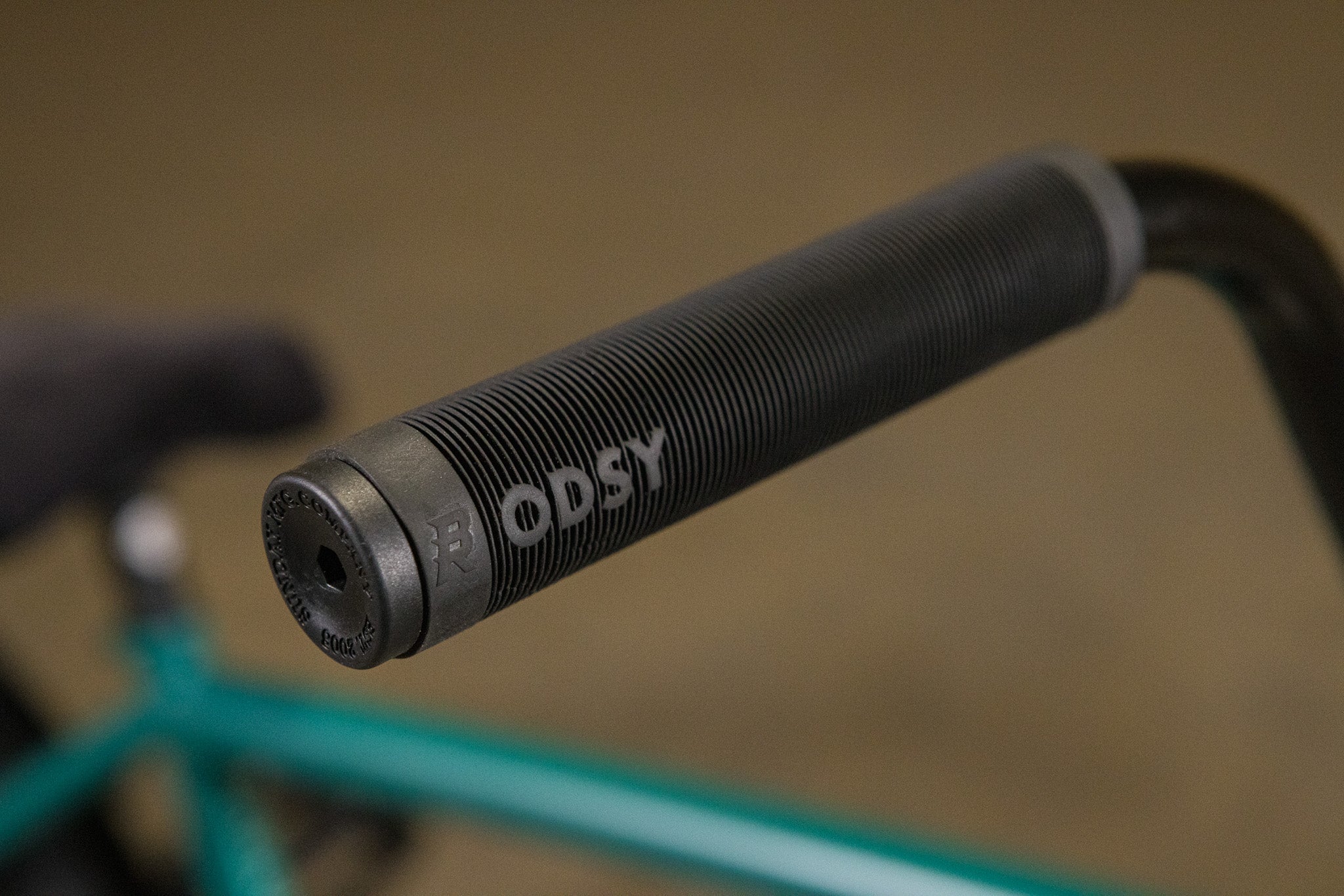

Grips: Odyssey Broc Raiford

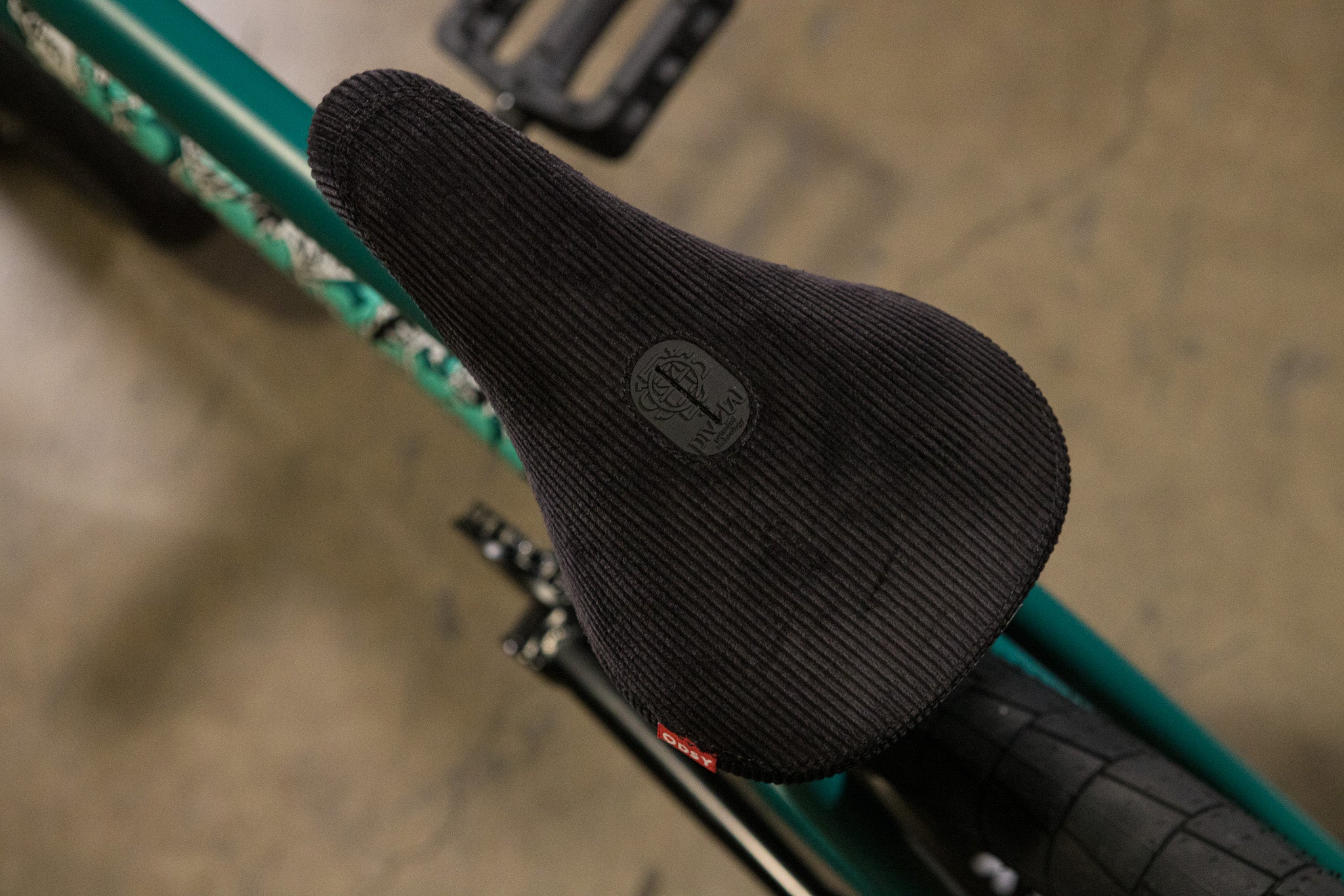

Seat: Odyssey Broc Raiford, Pivotal
Seat post: Odyssey Pivotal
Seat Clamp: Integrated

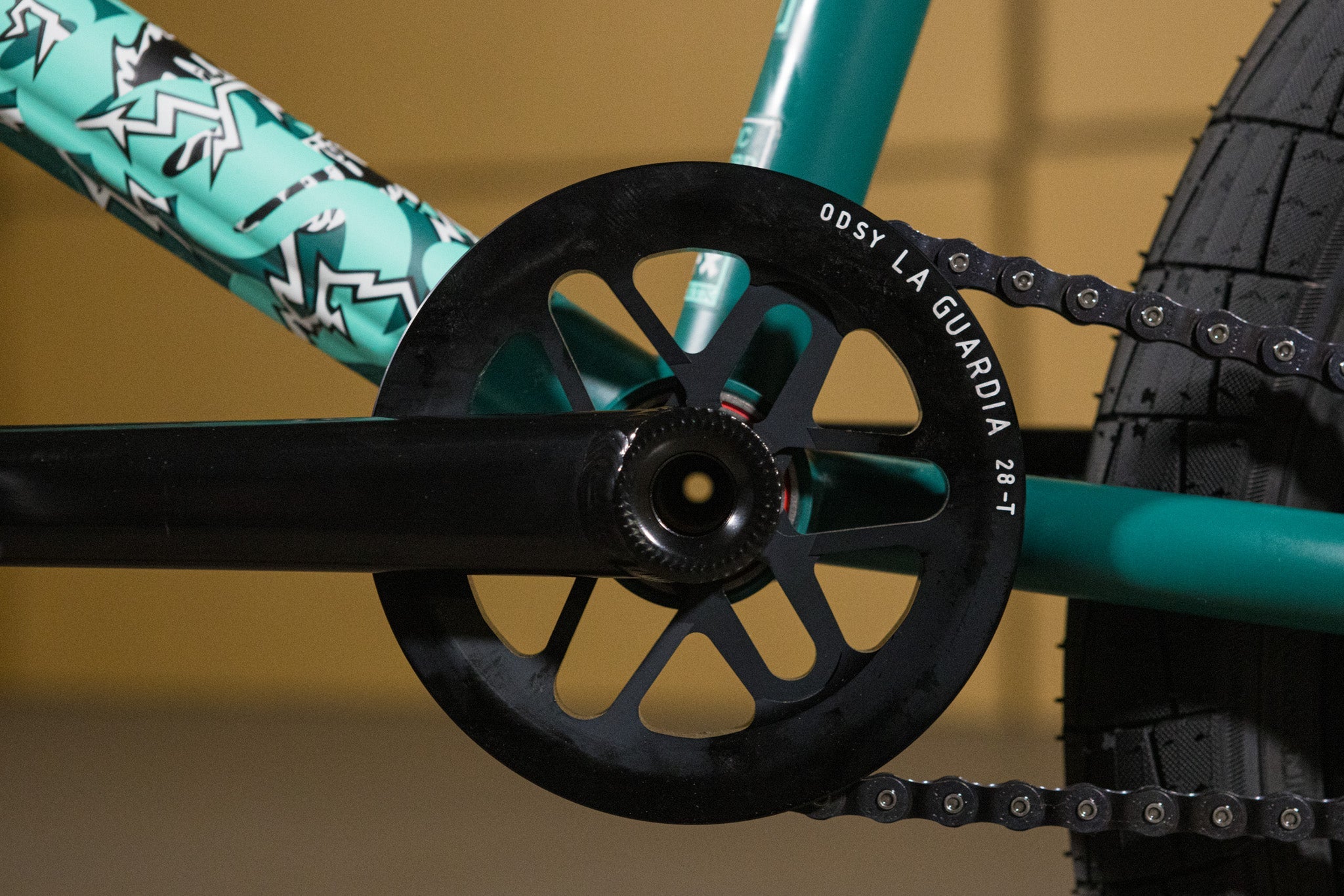

Sprocket: Odyssey La Guardia Sprocket, 28T
Cranks: Odyssey Thunderbolt, 170mm, 100% chromoly, 41-Thermal
BB Parts: Odyssey Sealed, Mid, 22mm
Pedals: Odyssey Twisted PC Pro

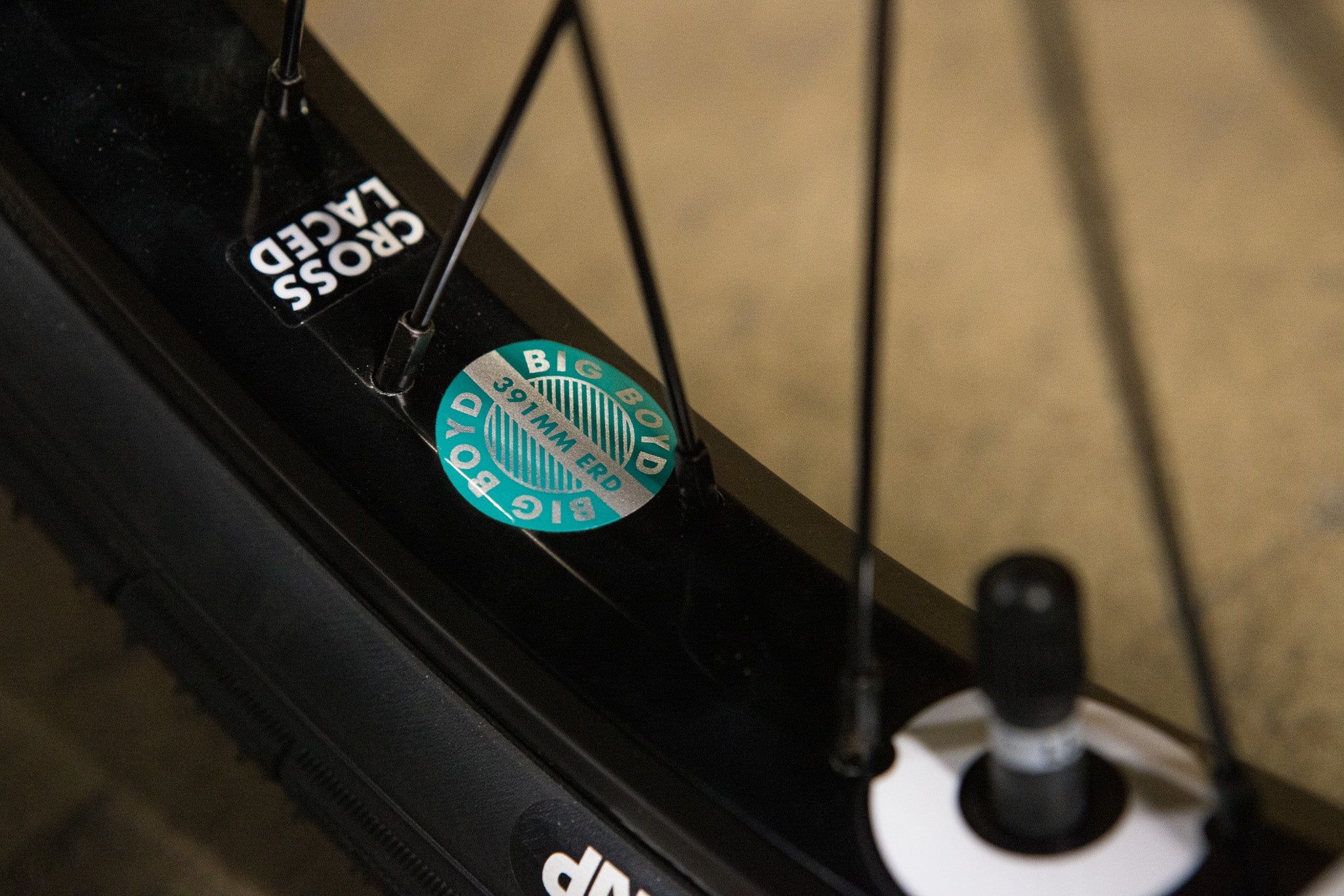

Rims: Odyssey Big Boyd, 20", 36H

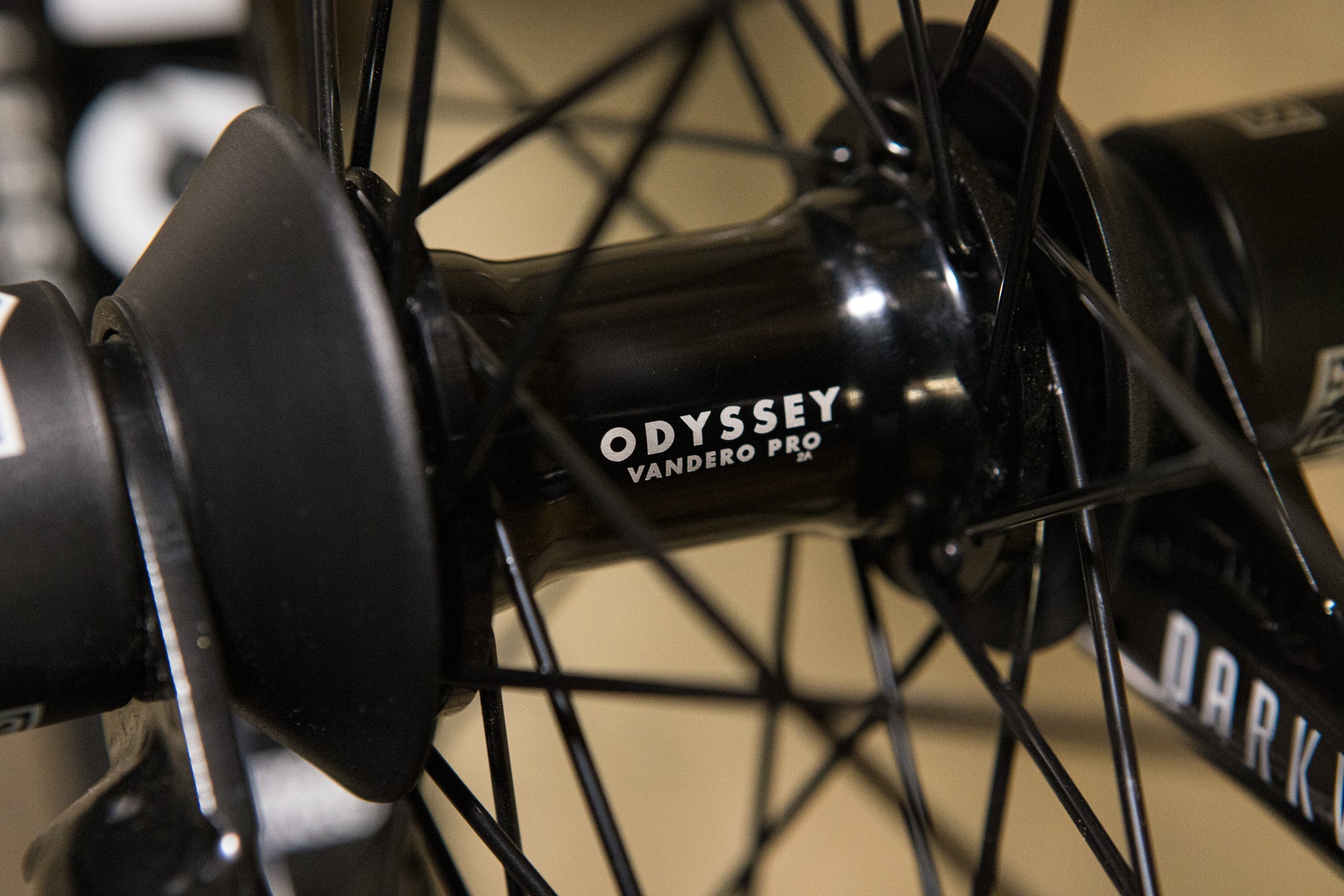

Front Hub: Odyssey Vandero Pro, 36H, sealed, 3/8" inbound axle bolts, plastic guards

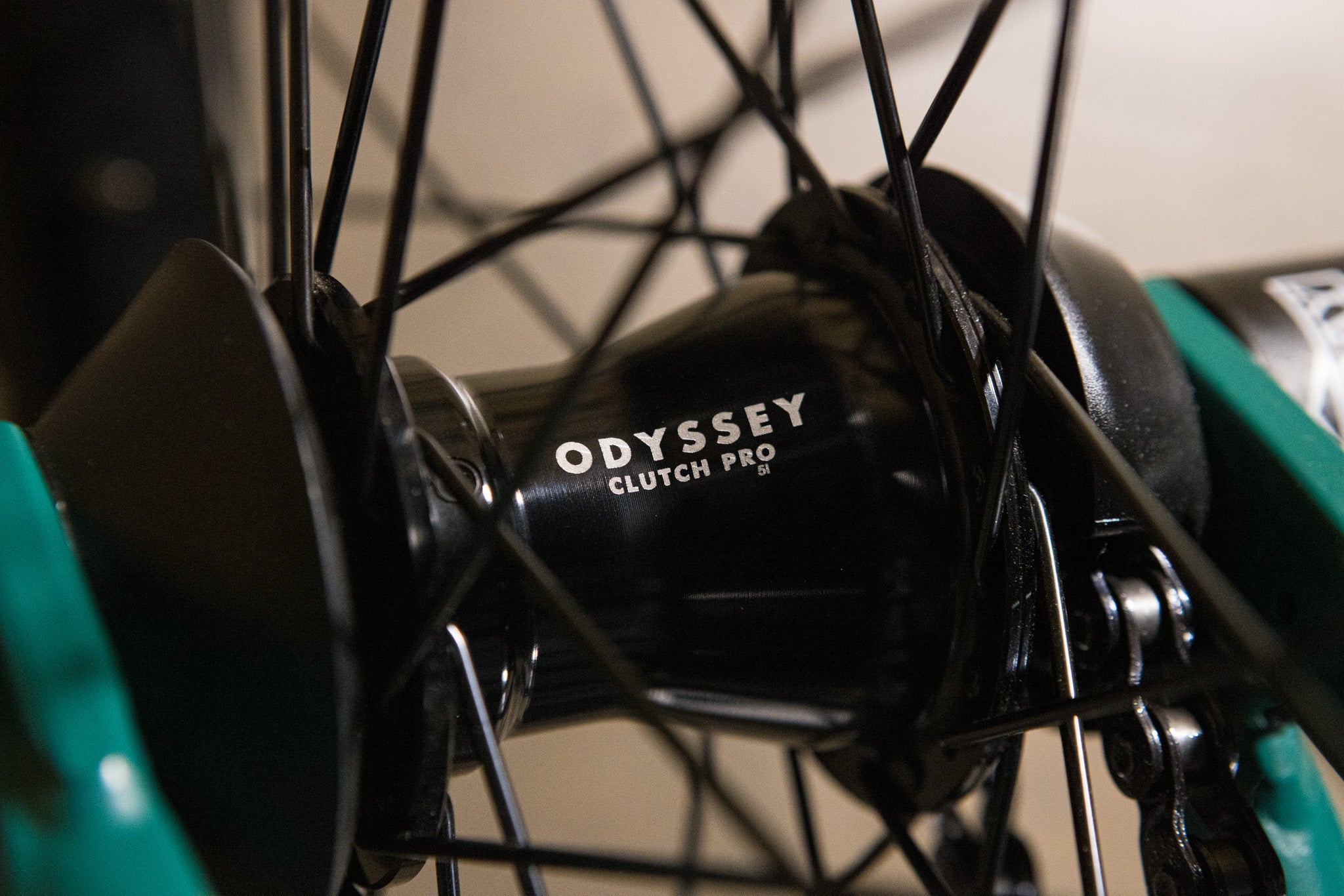

Rear Hub: Odyssey Clutch PRO freecoaster, 36H, 14mm inbound axle bolts w/ 9T driver, LHD, plastic guards
Spokes: 14g steel, black

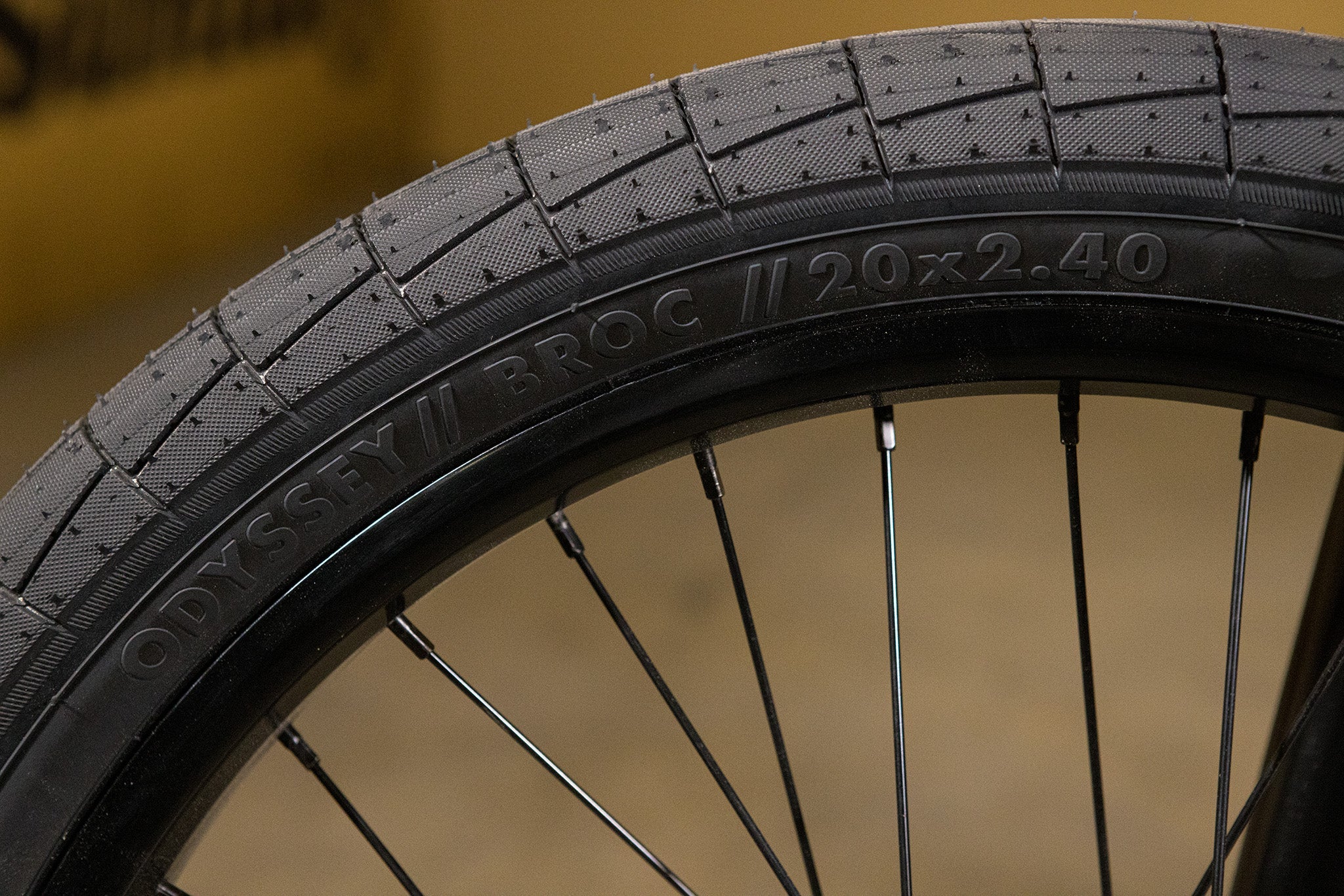

Tires: Odyssey Broc Tire, 20 x 2.4" (F & R)
Chain: Odyssey Bluebird Half-Link

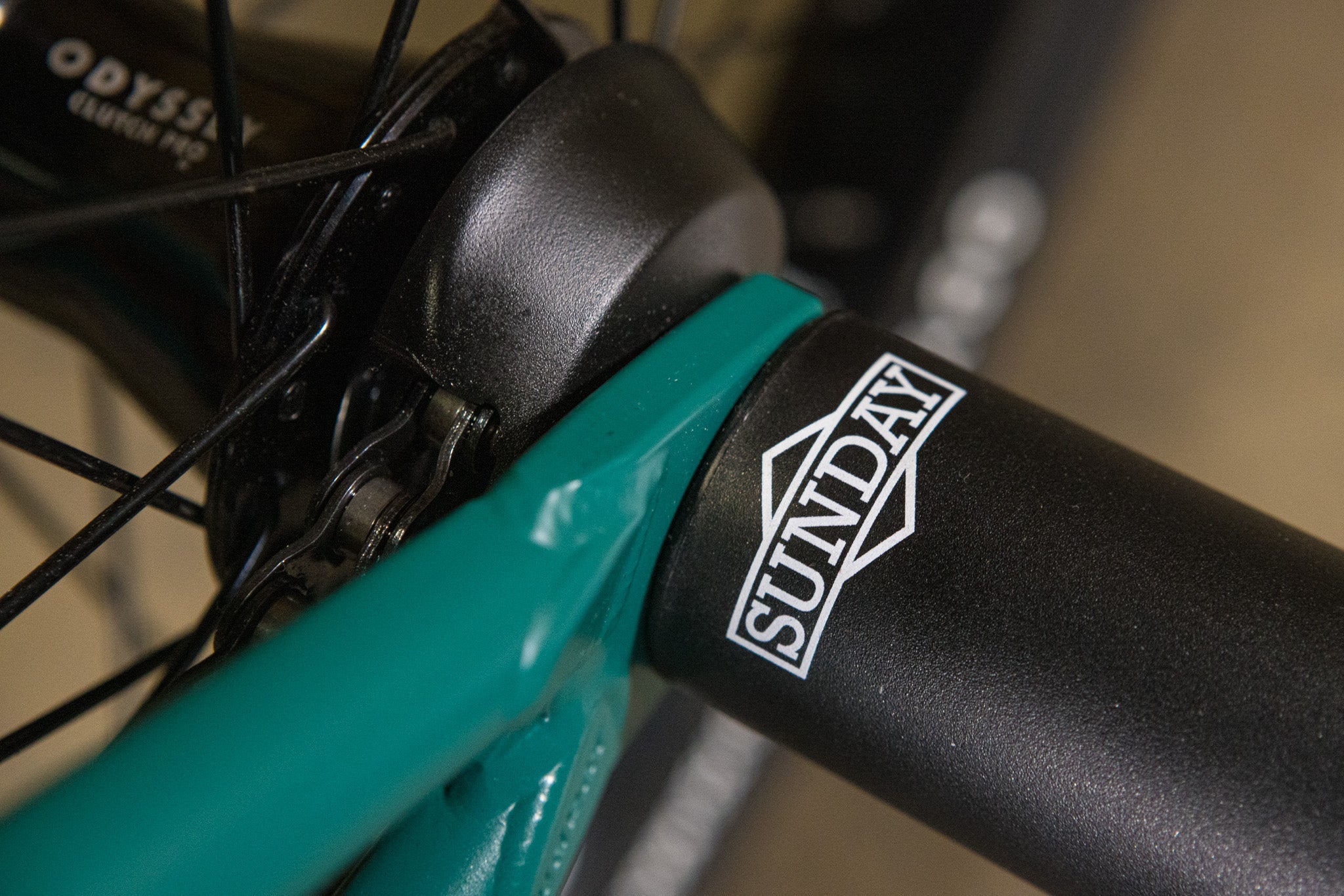

Pegs: Sunday Seeley Peg 4.75" (x4)
Approx. Weight: 24.97lbs (brakeless)
Frame Geometry
Top Tube Length: 21.25"
Head Tube Angle: 75.25°
Seat Tube Angle: 71°
Chainstay Length: 13.25"-13.5”
Bottom Bracket Height: 11.75"
Standover: 9.25”
Handlebar Geometry
Rise: 9.8"
Width: 29"
Backsweep: 10°
Upsweep: 2°
---
*Specs subject to change without notice.
