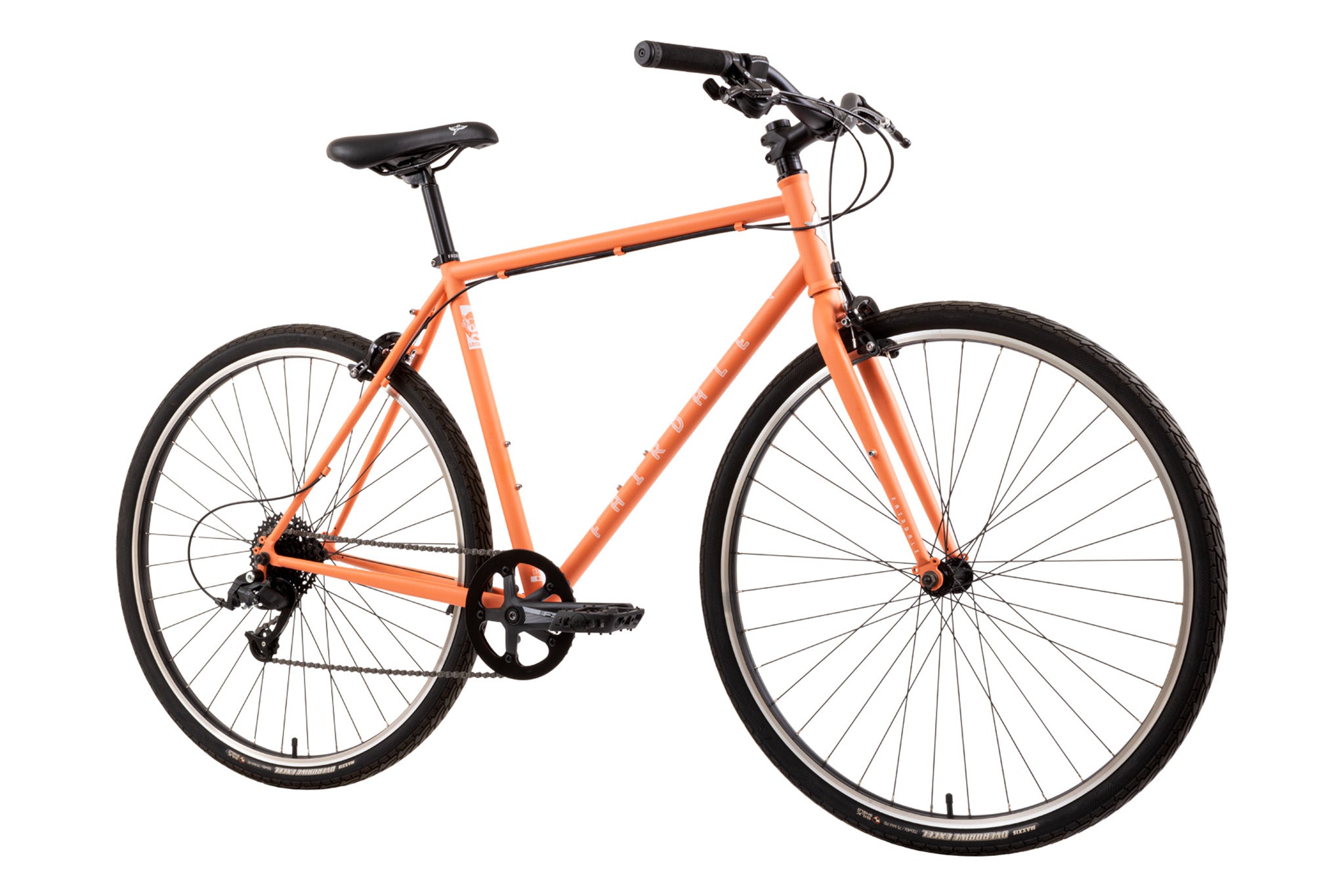

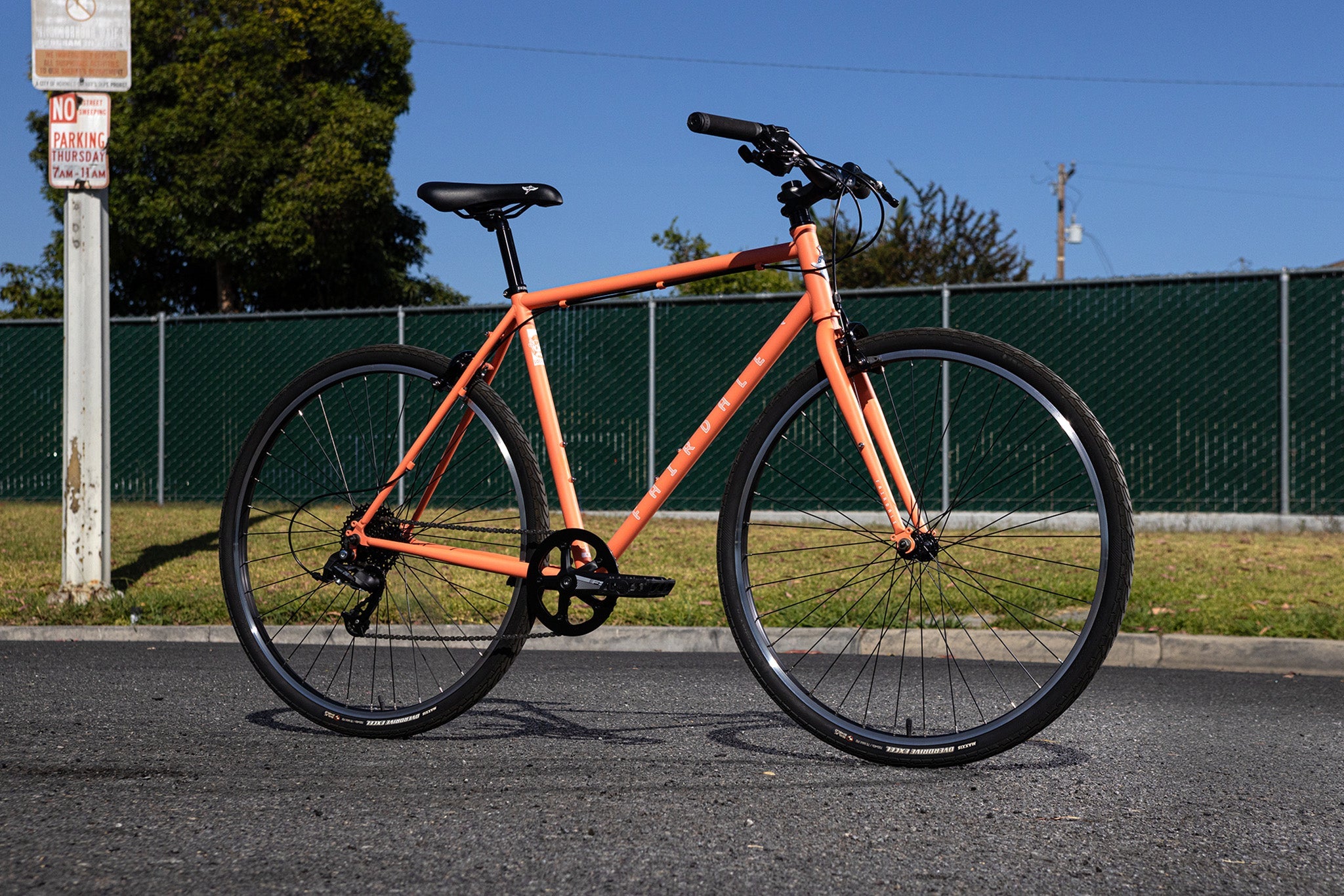

Fairdale LookfarMatte Coral Red in XS‑L
The Lookfar makes cruising and commuting easy. One simple trigger shifter changes the gears up-or-down through all 8-speeds. The bike’s 40mm wide Maxxis tires feel fast on smooth ground while still confidently handling rough terrain.
The Lookfar comes equipped with rack and fender mounts for lots of useful set-up options. We even chose to use normal Schrader valve tubes so you won’t need to use a special bike pump.
The Lookfar shares the same proven geometry as our ever-popular Weekender model.
Sizing
X-Small: 4'11" - 5'4" height
Small: 5'2" - 5'7" height
Medium: 5'7" - 5'10" height
Large: 5'9" - 6'1" height
Sizing is approximate. Please consult with your local bike shop to assist with fit.
Specifications
Frame: 1020 Steel, with 1-1/8" Integrated Head Tube and Rack and Fender Mounts
Fork: 1020 Steel, with 1-1/8" Steerer Tube
Handlebar: Fairdale Archer v3, Aluminum
Stem: 31.8mm clamp, 70mm, Forged Aluminum
Headset: FSA, Sealed Integrated
Brake Lever: Aluminum, Short Pull
Brake: Aluminum, Dual Pivot, 55-75mm reach w/Quick Release

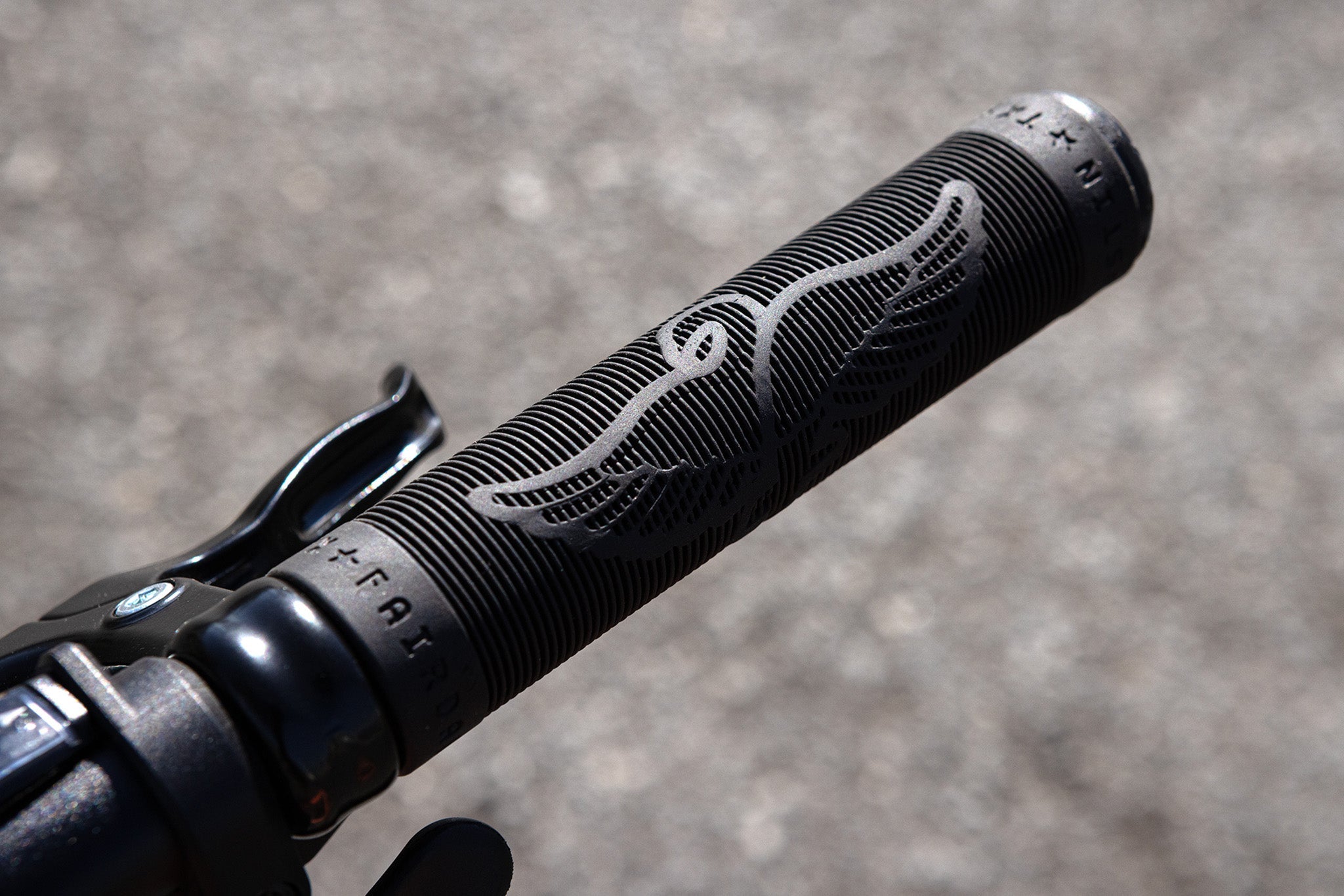

Grips: Fairdale Swan

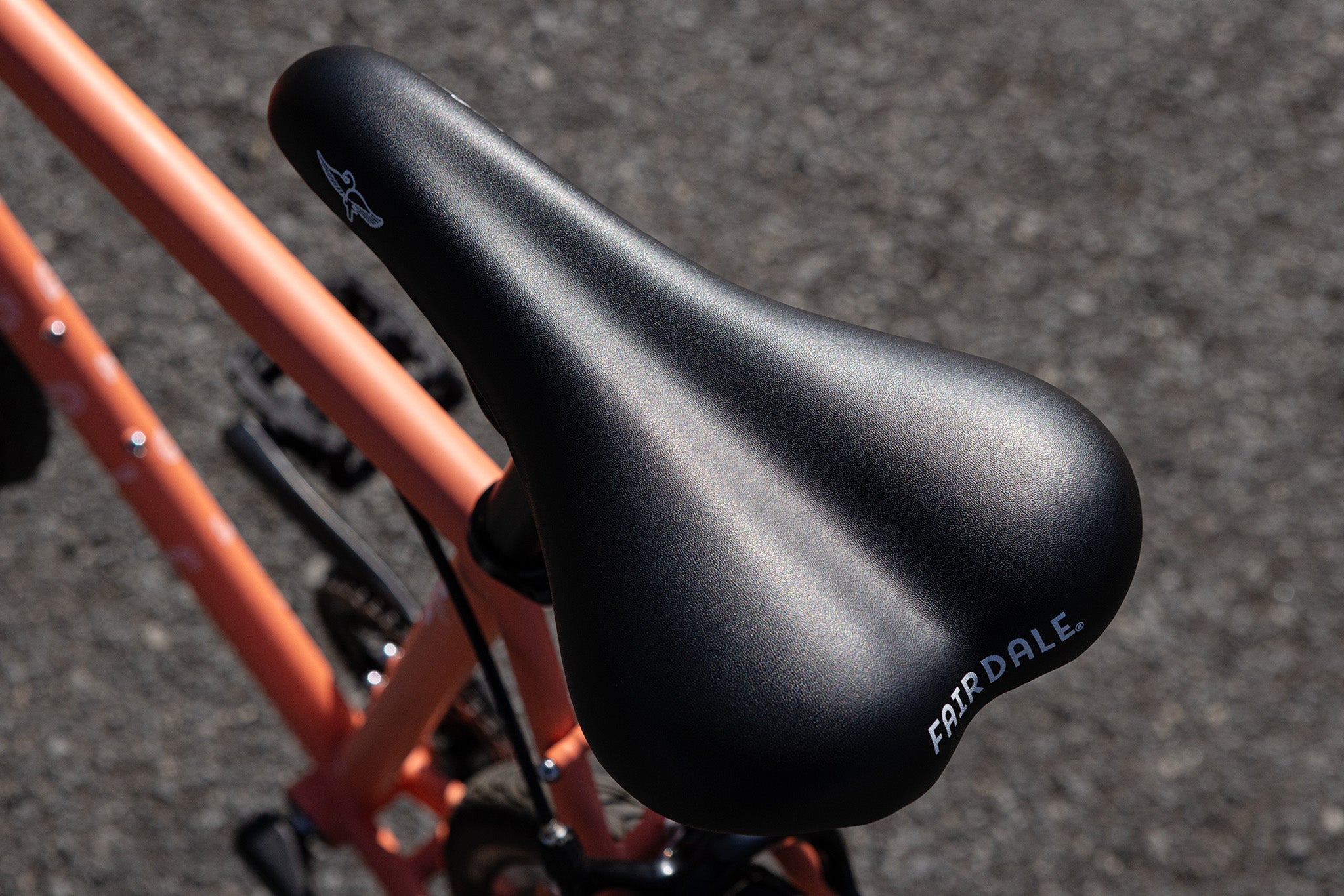

Saddle: Fairdale
Seat Post: Micro adjust, 27.2mm
Seat Clamp: Fairdale, 30mm

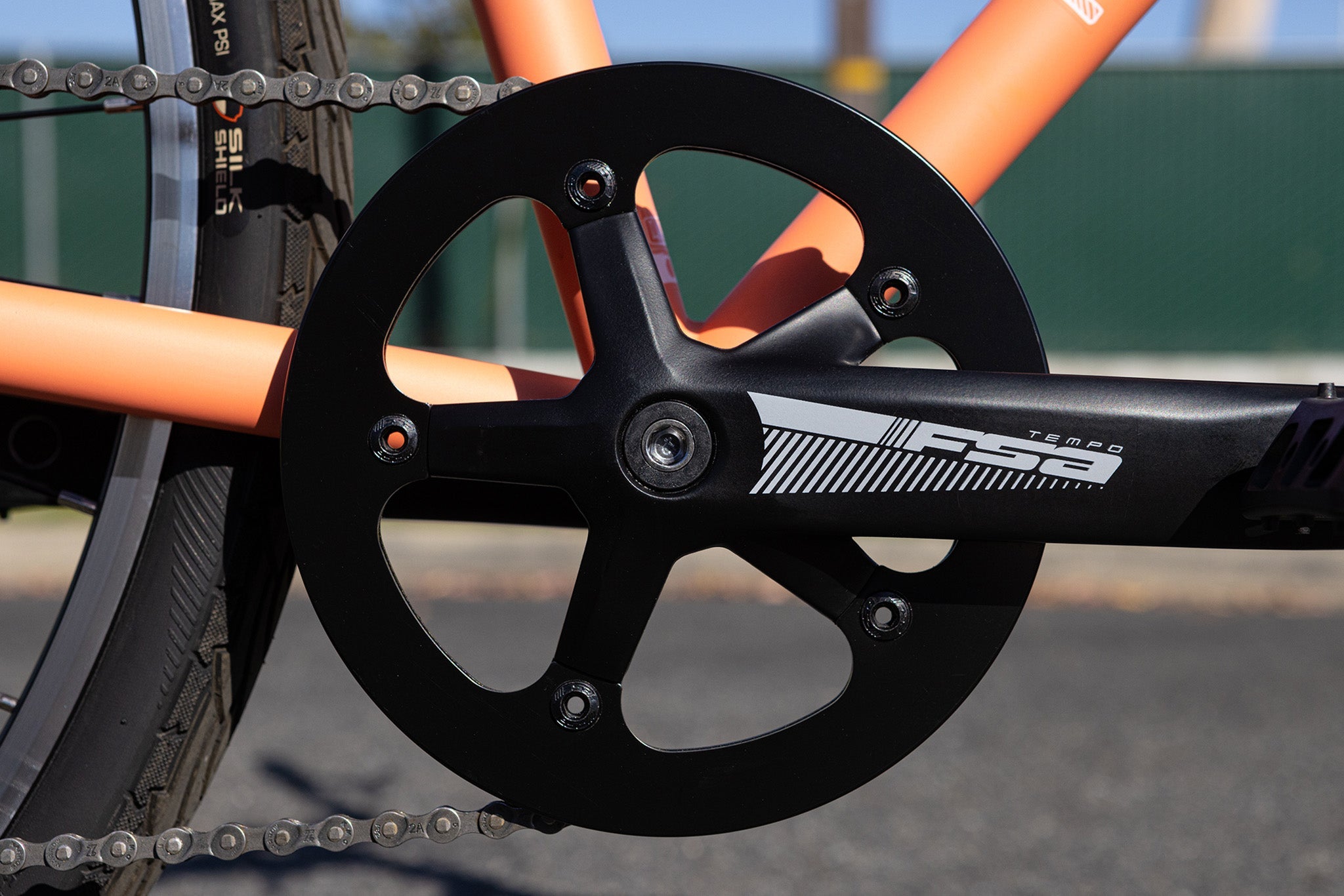

Cranks: FSA Tempo 1X (S=165mm, M=170mm, L/XL=175mm)
Chainwheel: 42t w/ Guard
BB Parts: FSA
Pedals: Odyssey Twisted PC
Rims: 700c, 36-Hole, Schrader Valve, Aluminum
Front Hub: 36H, 3/8” Axle
Rear Hub: 36H, 3/8” Axle
Freewheel: MicroShift, 11-14T, 8-Speed
Tires: Maxxis Overdrive Excel 700c x 40mm
Chain: KMC Z8.1, 8-Speed
R. Shift Lever: MicroShift Trigger, 8-Speed
R. Derailleur: MicroShift, 8-Speed
Shift Cable: Fairdale
Geometry
| Size | XS (49cm) | S (52cm) | M (55cm) | L (58cm) |
| Top Tube (Effective) | 508mm |
525mm |
552mm |
578mm |
| Top Tube (Actual) | 495mm |
507mm |
531mm |
559mm |
| Seat Tube (BB Center to TT Top) | 385mm |
436mm |
490mm |
538mm |
| Seat Tube (BB Center to TT Center) |
317mm |
370mm |
448mm |
496mm |
| Seat Tube Angle | 74.5 ° | 74° | 73° | 73° |
| Head Tube Length | 100mm | 120mm | 140mm |
160mm |
| Head Tube Angle | 69.6 ° | 70° | 71° | 72.5° |
| Chain Stay Length | 440mm | 440mm |
440mm |
440mm |
| Wheelbase | 1021mm | 1030mm |
1038mm |
1050mm |
| Standover | 698mm | 733mm |
780mm | 815mm |
| Stack | 521mm | 541mm |
564mm |
589mm |
| Reach | 363mm | 370mm |
379mm |
398mm |
| Fork Length | 401mm | 401mm |
401mm |
401mm |
| Fork Offset | 50mm | 50mm | 50mm | 50mm |
| BB Drop | 68mm | 68mm |
68mm |
68mm |
| Dropout Spacing | 135mm | 135mm | 135mm | 135mm |
| BB Type | English 68 | English 68 | English 68 | English 68 |
| Seat Post | 27.2mm | 27.2mm | 27.2mm | 27.2mm |
| Seat Clamp | 30mm | 30mm | 30mm | 30mm |
| Approx. Max Tire Width | 42mm | 42mm |
42mm |
42mm |
| Wheel Size | 700c | 700c | 700c | 700c |
---
*Specs subject to change without notice.
